Momentum M10
Electric Motor 10 kW - 15/20 hp - 3 shaft sizes
High-performance, custom-designed propeller made from durable marine-grade aluminium. Comes with an adjustable resistance throttle, a safety button for unlocking and reversing, and a custom quick-release mounting interface.
M-10 TECHNICAL OBM
MAX POWER
ARM LENGTH
PROPELLER DIAMETER
NUMBER OF BLADES
COOLING CIRCUIT
ON-BOARD COMPUTER
WEIGHT
10 Kw
39 cm short / 52 cm long
34 CM
4
100% SEA WATER
DISPLAY OF POWER AND RANGE OF THE INTEGRATED GPS
OBM + PROP : 22 kg, SUPPORT : 6 kg
Moteur électrique M10 - 10 kW - 15/20 Cv - 3 tailles d'arbres
PERFORMANCE
SPEED NDS
2.2 nds
3.2 nds
5.6 nds
11.9 nds
16.2 nds
SPEED Km/h
4.1 km/h
5.9 km/h
10.3 km/h
22 km/h
30 km/h
AUTONOMY
68.7 heures
17.5 heures
4.6 heures
1.3 heures
45 min
RANGE Km
281.9 km
102.3 km
47 km
28.5 km
23.1 km
RANGE nm
152 nm
55 nm
25 nm
15 nm
12 nm

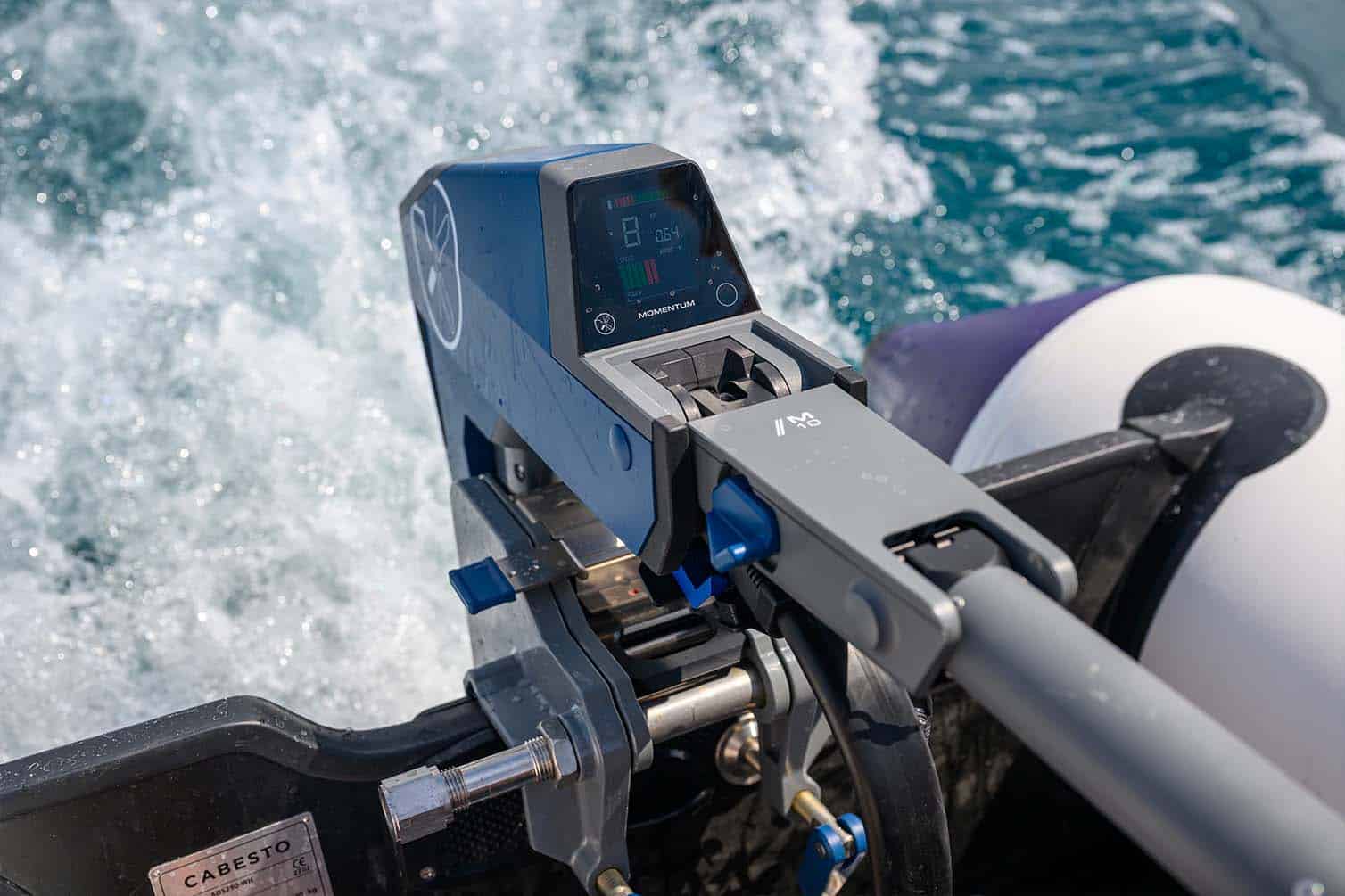

Built-in screen
Our integrated high-control colour display gives you key information at a glance, even in bright sunlight.
Security
The fully integrated Can-Bus interface between the motor, battery and accelerator ensures smooth and safe operation. A magnetic circuit breaker, waterproof connectors and a custom-made battery give you peace of mind with reverse and boost locking.
Multi-position trim
Install your Momentum motor in seconds and easily adjust the trim to 5 positions with our unique lever. It is the easiest motor in its class to install and remove. Leave it mounted on your boat, store it below deck, or take it home with you.
PACKAGE
Momentum M-10 OBM with multi-position tiller and on-board computer
Quick-release transom bracket
Battery charger
Circuit breaker x2
Custom-made 4-blade aluminium propeller
Integrated power and data cable
Instruction manual
Propeller tool
For remote applications without a tiller, our M10 remote unit is an extremely compact, ready-to-use configuration offering a wide range of options and high power in the smallest footprint on the market. Compatible with the MT-1 top-mount remote control for single or dual configuration, as well as the MT-2 reversible side throttle lever.
DIMENSIONS
SHORT ARM
DIMENSIONS
39 cm
WEIGHT
OBM + Propeller : 22 kg
Support : 6 kg
LONG ARM
DIMENSIONS
52 cm
WEIGHT
OBM + Propeller : 23 kg
Support : 6 kg
EXTRA LONG ARM
DIMENSIONS
64 cm
WEIGHT
OBM + Propeller : 24 kg
Support : 6 kg
BATTERY AND ACCESSORIES
Frequently Asked Questions — M10 Electric Outboard Motor
Which boats is the M10 compatible with?
The Momentum M10 is designed for tenders, sailboats (up to 10 tonnes), workboats, and inflatables. Its 3 available shaft sizes (short, long, and extra-long) make it adaptable to virtually any hull type and transom height.
How long does the battery last?
At cruising speed (3.2 knots), the M10 delivers up to 17.5 hours of autonomy with a 10 kWh battery — over 100 km of range. At low speed (2.2 knots), autonomy reaches an impressive 68.7 hours and 281 km range.
Is the M10 suitable for saltwater use?
Absolutely. The M10 uses a 100% seawater cooling circuit and features waterproof connectors throughout. It is built for continuous use in marine environments, whether coastal or offshore.
How difficult is the installation?
The M10 features a quick-release custom mounting interface — no special tools required. The multi-position trim system adjusts in seconds via a single lever, offering 5 trim positions for optimum performance in any sea state.
What certifications does the M10 carry?
The M10 electric outboard motor is CE certified and compliant with current European marine standards, making it suitable for both recreational and professional maritime use across Europe and beyond.
Why does the M10 electric outboard run on 72 V when most marine electric motors use a 48 V system?
48 V has emerged as the de facto standard in recreational electric boating, but it is not a regulatory ceiling. The 72 V architecture on the M10 electric outboard reflects a clear engineering choice: at equal power, a higher voltage means lower current, which reduces copper losses, cable heating and the conductor cross-section required. On a compact electric outboard like the M10, this translates directly into improved efficiency, higher power density and a lighter installation. The M10 remains within the Extra-Low Voltage range and benefits from a complete system architecture: CAN-Bus supervision between motor, lithium battery and controls, marine-grade waterproof connectors and a magnetic safety kill-switch.
Is the 72 V M10 electric outboard motor certified and compliant with European and international standards?
Yes. The M10 electric outboard is covered by an EU Declaration of Conformity under three European directives: the Low Voltage Directive 2014/35/EU (harmonised standard EN IEC 62368-1:2020+A11:2020), the Electromagnetic Compatibility (EMC) Directive 2014/30/EU, and the RoHS Directive 2011/65/EU on hazardous substances. For the North American market, the M10 also holds an FCC Supplier’s Declaration of Conformity under CFR Title 47 Part 15 Subpart B. Declarations of conformity and associated test reports are available on request from your Momentum Electric distributor.
